Chesapeake Lightship
Cyberlights Lighthouses - Chesapeake Lightship

WLV-116 / WAL-538 Quick Facts

Year Built: 1930

Length: 133 feet

Beam: 30 feet

Draft: 14 feet

Tonnage: 133 tons displacement

Construction:

Propulsion: Diesel-electric - one 350 HP electric motor driven by any or all of four 75 KW diesel engine/generator units; 350 SHP @ 300 RPM; 5'9"dia propeller; max speed 10 knots, average 9 knots

Station on Assignment:

1930-1933: Fenwick Island Shoal (DE) 1933-1942: Chesapeake (VA) 1942-1945: Examination Vessel, WWII 1945-1965: Chesapeake (VA) 1965-1970: Delaware (DE)





         Cyberlights Lighthouses

Chesapeake Lightship
Baltimore, MD

Cyberlights Lighthouses - Chesapeake Lightship

More Photos
(5 photos, 148KB total download)

Last Visited: September, 2007

History:
LS116 was built by the Dry-dock & Machine Company in Charleston, SC in 1929. The contract price was $274,434. The LS116 was launched on October 22, 1929 and completed fitting out by August 14, 1930. She was considered "the finest afloat".

She was driven by diesel electric propulsion, with one 350 h.p. electric motor turned by any one or all four Winton 75-kw diesel engine/generator units. Top speed of 10 knots came from the 5.9 feet dianeter propeller. Fuel oil capacity was 24,000 gallons. The engine deck could produce a total of 400,000 watts DC - that's enough to light 4,000 100-watt bulbs!

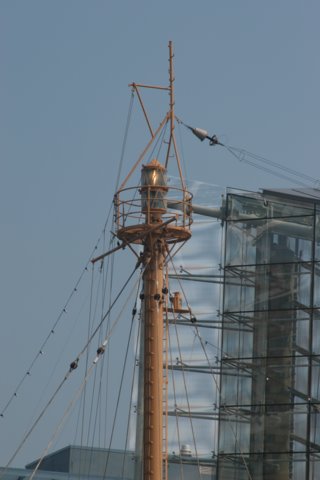

The Chesapeake was initially fitted with a submarine fog bell. It was changed to a two-tone diaphone in 1935. The main lights were shown from two 375mm electric lens lanterns, one on each mast.

The LS116 was built for crew comforts. There were three toilet compartments, each with its own shower. A water distiller on the upper engine room catwalk converted seawater for use in these areas. She carried 10,000 gallons of drinking water in tanks. The galley stove initially ran off heating oil but was eventually replaced by an Akron Electric Company stove.

The Chesapeake had a crew of 16, including a cook. There were four or five men ashore at any one time. Crews served two months aboard, one ashore.

500 pounds of ice were brought out by tender vessel very month for the big ice box on the Chesapeake. It would last about two weeks.

LS116 career details were Chesapeake, Virginia (1933-1942); as an examination vessell off Sandwich, Massachusetts during the Second World War (1942-1945) when she was armed with two rapid fire 20mm guns for her patrols near the Cape Cod Canal; Chesapeake (1945-1965); Delaware (1965-1970).

LS116 was re-designated WAL 538 by the Coast Guard and was retired from active duty August 25, 1970. She was decommissioned on January 6, 1971. Later that year the ship was transferred to the National Park Service and used as a floating environmental classroom at Hains Point, Washington DC until 1980.

In June 1981 the Mayor of Baltimore accepted the lightship on behalf of the city and she was socked at Pier IV on Pratt Street.

Source: The Chesapeake Chapter, US Lighthouse Society

Hours:
The lightship is open daily, along with Seven Foot Knoll Lighthouse, spring to fall and Friday to Sunday in winter (museum admission fee).

Latitude/Longitude: 39.285818,-76.606337

Nearest Address: 698 E Pratt St, Baltimore, MD

Directions:
  • From I-95 in Baltimore take Exit 53 onto Route 395 north.
  • In about 1 mile 395 turns into S. Howard St.
  • Continue on S. Howard St. for about 0.2 miles (you'll go past Camden Yards on your left). At the intersection with W. Pratt St. turn right onto W. Pratt.
  • In about 0.5 miles you'll see the Lightship off to your right, in front of the Hard Rock Cafe and Baltimore Aquarium. Parking can be difficult to find. You can either park at one of the various hotels in the area or continue about 0.25 miles. Just after you cross President St. there is a parking garage on the right.
